Lumen Logic™ LogiPath G2 12V Brass Mini Path Light (Bronze) with 3W 2700K G4 LED Bulb
Lumen Logic
The Lumen Logic™ LogiPath G2 Mini Path Light is a compact, professional-grade low voltage landscape fixture that's crafted from solid brass with a pre-aged bronze finish. This "mini" version stands 15 inches tall, making it the ideal solution for low-profile applications, small garden beds, and narrow walkways. It provides a focused 6-foot diameter area of warm white illumination, offering safety and elegance without overpowering smaller areas.

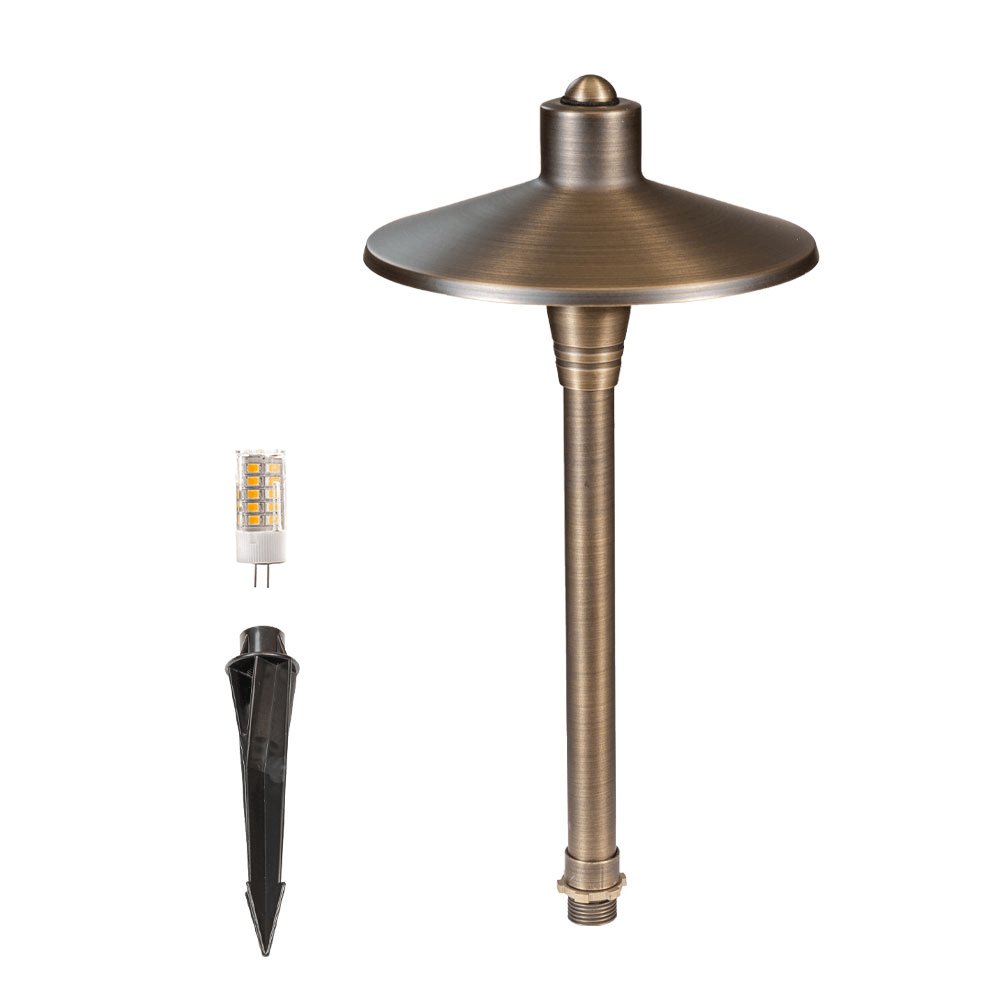

What’s Included
- (1) LogiPath G2 Mini Solid Brass Path Light
- (1) 3W G4 LED Bulb (30,000-hour life)
- (1) 9-inch PVC Ground Stake
- Pre-installed Lead Wire: 4 feet
Key Features
SOLID BRASS - Will not rust or corrode, unlike cheap aluminum path lights.
LED BULB INCLUDED - The included 3W LED G4 bi-pin bulb produces 300 lumens of 2700K warm white light, the most popular color temperature in landscape lighting; the fixture output is 100 lumens.
MINI SIZE - Stands 15 inches tall with 7-inch diameter hat and 1-inch thick stem. Produces a 6-foot diameter area of illumination. By comparison, the full-size version of this path light stands 24 inches tall and produces a 12-foot diameter area of illumination.
WATERTIGHT - A rubber plug protects the entry point for the 4-foot 18AWG SPT-1 lead wire from moisture intrusion.
LIFETIME WARRANTY - Both this path light and the LED bulb are backed by our lifetime warranty.
Ideal Use Cases
- Low-Profile Lighting: Perfect for areas where a standard 24-inch tall fixture would look out of scale.
- Narrow Pathways: Provides a controlled 6-foot diameter light spread to minimize "light spill" into unwanted areas.
- Coastal Environments: Solid brass construction ensures corrosion resistance, even in salt air or high-moisture regions.
Frequently Asked Questions
Q: How tall is this light compared to the standard path light? A: This Mini version is 15 inches tall. The standard LogiPath G2 is 24 inches tall.
Q: What is the spacing recommendation for this light? A: For continuous light coverage along a path, space these fixtures approximately 4-5 feet apart, depending on your terrain. For independent pools of light, space about 6-8 feet apart. For a staggered layout on opposite sides of a path, space the fixtures about 3-4 feet apart in a zig-zag pattern.
Q: Does this require a transformer? A: Yes, all low voltage landscape lighting fixtures require a low voltage transformer (sold separately).
Q: Can I replace the bulb with a different color? A: Yes. The fixture uses a standard G4 Bi-Pin LED bulb, which can be easily swapped if you prefer a different brightness or color temperature.
Technical Specifications
| Product Code | LPL-PLKIT4 |
| Material | Solid Brass |
| Finish | Bronze |
| Water Resistant | Rubber plug to protect the wire entry point from moisture |
| Lead Wire | 4' 18AWG, SPT-1 (pre-stripped) |
| Lens | Clear Polycarbonate |
| Mounting | 9" PVC Stake |
| Warranty | Lifetime |
| Light Source | LED G4 Bi-Pin |
| Wattage | 3W |
| Voltage | 12V AC (low voltage) |
| Dimensions | 15" tall; 7" diameter hat |
| Fixture Lumens | 100 Lumens |
| Area of Illumination | 6' Diameter |
| Color Temperature | 2700K (Warm White) |
| Certifications | UL/cUL Listed |
View Full Specs: LogiPath G2 Mini
